Travel Distance 360mm Hair Friction Tensile Tester ST-16AS Loadcell 0.5 1 2 5kg Etc

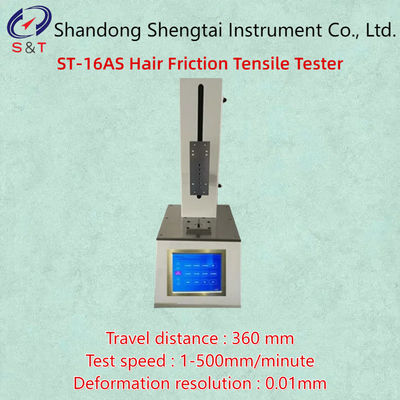

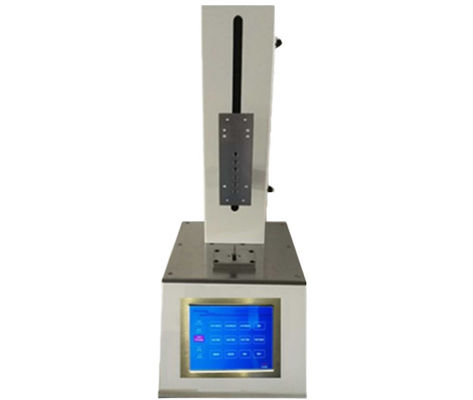

ST-16AS Hair Friction Tensile Tester

The ST-16AS hair friction tensile tester can comb and measure hair by driving a toothed comb with a robotic arm to move, and is used to evaluate hair characteristics such as friction and tensile force

The ST-16AS hair friction tensile tester mainly includes a dedicated software for the texture analyzer mainframe, spare probes, and accessories. Its basic structure generally consists of a mechanical device capable of deforming the sample, a container for holding the sample, and a recording system for recording force, time, and deformation rate. The testing revolves around distance, time, and force for testing and result analysis. The physical property analyzer mainly reflects the texture characteristics related to mechanical properties, and its results have high sensitivity and objectivity. The results can be accurately quantified through the equipped specialized software to objectively and comprehensively evaluate the item with quantitative indicators.

Product Introduction :

●Used for physical property testing of frictional tension in hair and hair products

●Testing indicators: various physical properties such as tensile force, friction force, etc

●The testing process is completed through an LCD touch screen, with built-in normal mode (single experiment), etc

●The achievable testing methods include penetration, tensile force, pressure, etc

●The transmission mechanism adopts ball screws for smooth and accurate transmission; Adopting imported servo motors, with low noise and precise control

●Adopting a 24 bit high-precision AD converter and high-precision force sensing element to ensure the speed and accuracy of instrument force value data acquisition.

●Real time display of force time, force deformation, force displacement, etc. during the experiment

Product parameters :

Force sensing element : 0.5, 1, 2, 5, 10, 20, 30, 50Kg (choose one)

Force resolution : 0.01N

Deformation resolution : 0.01mm

Test speed : 1-500mm/minute (stepless speed regulation)

Travel distance : 360 mm (increase or decrease as needed)

Note : The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
