100ml Digital Burgundy Viscometer Error ± 0.5ml QB2354 Measuring Range 0-9.99mPa.S

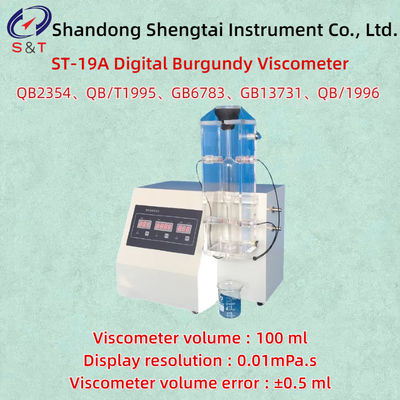

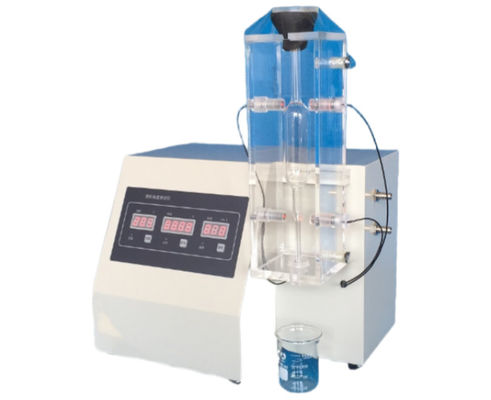

ST-19A Digital Burgundy Viscometer

The ST-19A digital Burgundy viscometer is a specialized instrument used to measure the Burgundy viscosity of gelatin. It is designed and manufactured according to the QB2354 standard for medicinal gelatin, and also complies with QB/T1995,GB6783,GB13731,QB/1996. The measurement of Burgundy viscosity of gelatin is an important indicator reflecting the level of gelatin production technology and controlling the quality of gelatin production. It is also applicable to the viscosity performance testing of all gelatin such as edible gelatin, medicinal gelatin, industrial gelatin, bone glue, etc; Viscosity testing of gelatin liquids such as agar and protein powder.

Technical feature:

● Digital tube display.

●The viscosity tester operates in B1oom mode and displays the Burgers viscosity value digitally.

●The constant temperature water bath has high temperature control accuracy and uniform water bath temperature.

●Standard capillary viscometer, precision photoelectric sensor.

●Automatically calculate time and viscosity value.

● Automatic timing, automatic alarm, and automatic continuous testing.

●Automation, automatic detection, automatic diagnosis, and automatic alarm.

Applicable standards:

●National standard "Food Additive Gelatin" GB6783

●National standard "Medicinal Gelatin Hard Capsules" GB13731

●Industry standard "Medicinal Gelatin" QB2354

●Industry standard "Industrial Gelatin" QB/T1995

●Industry standard "Bone Glue" QB/1996

●Industry standard "Photographic Gelatin" QB1997

Technical Parameter:

● Viscosity measurement range : 0-9.99mPa.s

● Display resolution : 0.01mPa.s

● Instrument measurement accuracy : ±0.02mPa.s

●Time measurement range : 0-99.99 seconds

●Time measurement accuracy : ≤ 0.01 seconds

● Temperature control range of water bath : room temp -70 ℃

● Temperature control accuracy of water bath : ±0.1 ℃

● Viscometer volume : 100 ml

● Viscometer volume error : ±0.5 ml

● Longitudinal center moment of measuring device : 152 mm ± 0.5 mm

● Working power supply : AC 220V ± 10% 50Hz ≤ 500W

● Environmental conditions : Room temp 10-30 ℃, humidity ＜ 75%

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
