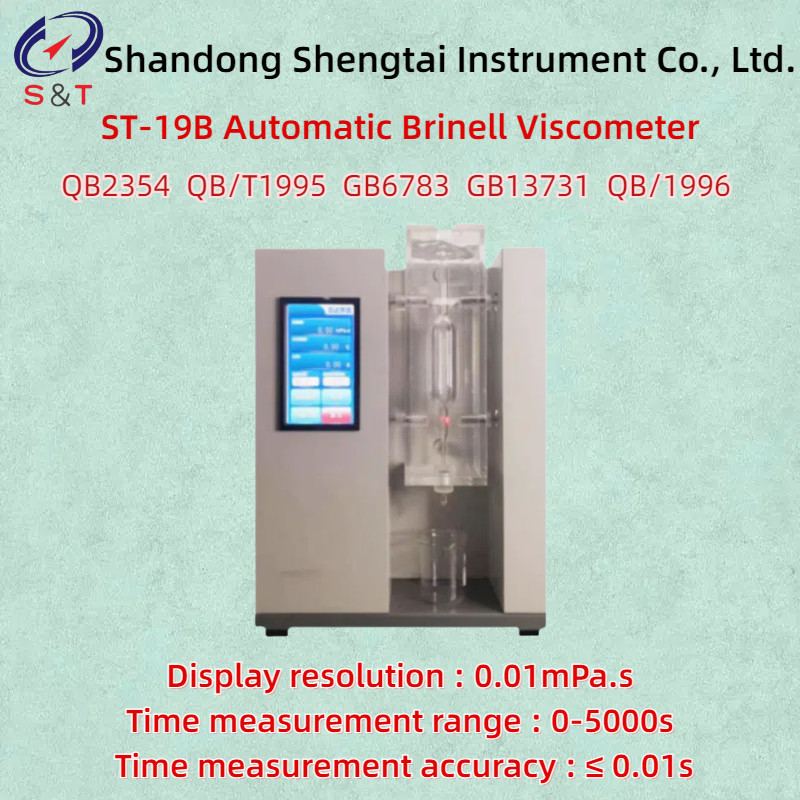

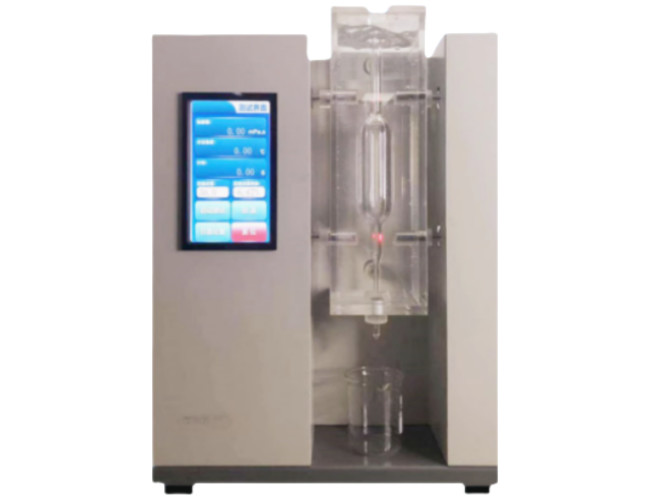

ST-19B Automatic Brinell Viscometer

The ST-19B automatic Brinell viscometer is a specialized instrument used to measure the Brinell viscosity of gelatin. It is designed and manufactured according to the QB2354 standard of "Medicinal Gelatin" and also complies with QB/T1995 GB6783,GB13731,QB/1996. The measurement of Burgundy viscosity of gelatin is an important indicator reflecting the level of gelatin production technology and controlling the quality of gelatin production. It is also applicable to the viscosity performance testing of all gelatin such as edible gelatin, medicinal gelatin, industrial gelatin, bone glue, etc; Viscosity testing of gelatin liquids such as agar and protein powder.

Technical feature:

● Microcomputer control, menu style interface, PVC operation panel, and large LCD display.

● Support viscosity measurement of different specific gravity samples at different temperatures

● Perform statistical analysis on grouped samples and provide maximum and minimum values

● The system supports both tensile and compressive testing modes, and the speed can be freely set

● Provide time correction function;

● Intelligent temperature correction function;

● Viscosity tube parameter calibration function;

● The transparency selection function of the tested liquid expands the range of the tested substance and realizes the multi field application of Burgundy viscosity;

● One click switching between Chinese and English operating interfaces;

● Provide historical data query function; Provide printing function options;

● Provide more stringent automatic fault detection, automatic fault repair, and automatic fault alarm functions

Applicable standards:

● National standard "Food Additive Gelatin" GB6783

● National standard "Medicinal Gelatin Hard Capsules" GB13731

● Industry standard "Medicinal Gelatin" QB2354

● Industry standard "Industrial Gelatin" QB/T1995

● Industry standard "Bone Glue" QB/1996

● Industry standard "Photographic Gelatin" QB1997

Technical Parameter:

● Viscosity measurement range : 0-99.99mPa.s

● Display resolution : 0.01mPa.s

● Instrument measurement accuracy : ±0.02mPa.s

● Time measurement range : 0-5000 seconds

● Time measurement accuracy : ≤ 0.01 seconds

● Time display resolution : milliseconds

● Temperature control range of water bath : room temperature -70 ℃

● Temperature control accuracy of water bath : ±0.1 ℃

● Resolution of water bath temperature display : 0.01 ℃

● Viscometer volume : 100 ml

● Viscometer volume error : ±0.5 ml

● Longitudinal center moment of measuring device : 152 mm ± 0.5 mm

● Working power supply : AC 220V ± 10% 50Hz ≤ 500W

● Environmental conditions : Room temperature 10-30 ℃, humidity ＜ 75%

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
