Preset 5min Granular Activated Carbon Strength Tester ST-108 Speed 50r/Min GB/T 7702.3

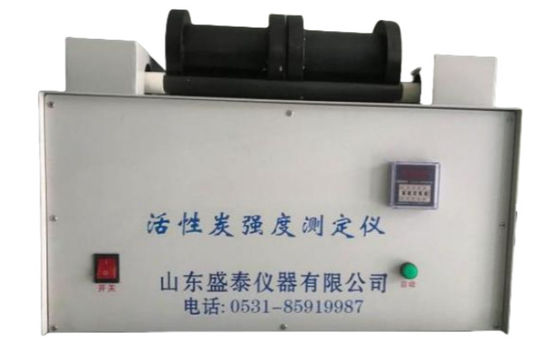

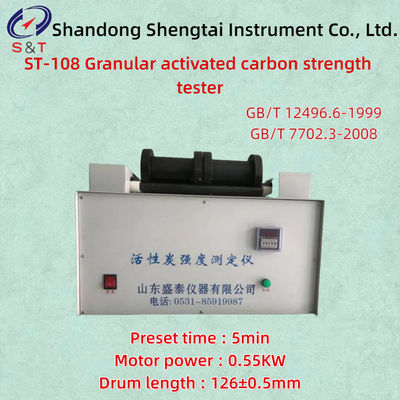

ST-108 Granular activated carbon strength tester

The ST-108 granular activated carbon strength tester is a specialized instrument for measuring the wear resistance of activated carbon. Designed and manufactured in accordance with the national standard GB/T 12496.6-1999 "Test Method for Wood Activated Carbon - Determination of Strength" and GB/T 7702.3-2008 "Test Method for Coal Granular Activated Carbon - Determination of Strength"

It is also applicable to the measurement and analysis of particles with similar properties

Capable of measuring the strength of various particles, such as spherical, extruded, and sheet-like catalysts and catalyst supports; Analyze the sample and provide data analysis basis for improving the particle material ratio

Main technical parameters:

Drum speed : 50r/min ± 2r/min

The drum is equipped with five solid steel balls

Steel ball diameter : φ14.3mm±0.2mm

Inner diameter of drum : φ80mm±0.2mm

Drum depth : 126mm±0.5mm

Drum wall thickness : 3mm±0.3mm

Outer diameter of drum end cover : 120mm ±0.5mm

The roughness of the inner surface of the drum is : Ra1.6∽Ra5.3

Drum length : 126±0.5mm

Motor power : 0.55KW

Input voltage : 380 /220v

Preset time : 5min

Remarks:

lAccording to the requirements of GB/T 12496.6 and GB/T 7702.3-2008 standards

lCoal based activated carbon uses a specialized cylinder with longitudinal reinforcement inside for its strength.

lWooden activated carbon columnar carbon uses a special activated carbon strength cylinder with longitudinal bars inside.

lWooden activated carbon amorphous particles are used in activated carbon strength specialized cylinders without longitudinal bars inside.

lIf measuring both the strength of coal based activated carbon and wood based activated carbon, it is recommended to equip two additional cylinders, namely two activated carbon strength cylinders with longitudinal bars and two activated carbon strength cylinders without longitudinal bars.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
