6 Samples Per Test Neutral Acid Washing Fiber Tester Measure 90min Relative Error ≤ 4%

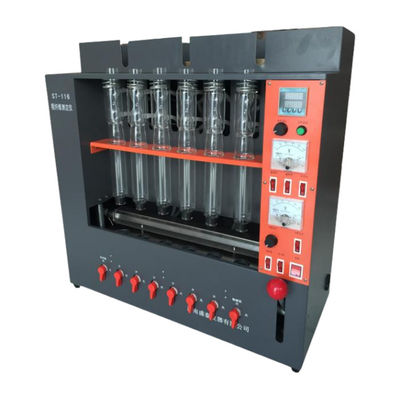

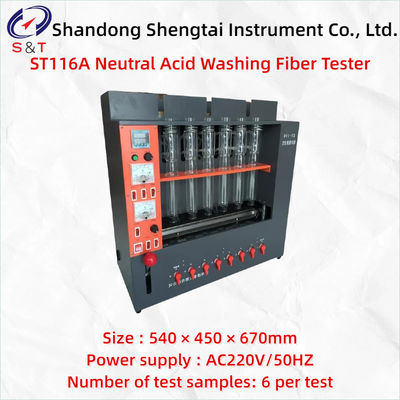

ST116A Neutral Acid Washing Fiber Tester

The ST116A neutral acidic fiber analyzer is an instrument that uses Van Soest's washing fiber analysis method to determine neutral washing fiber (NDF) and acidic washing fiber (ADF), and performs weight determination to obtain the neutral washing fiber and acidic washing fiber content of the sample. Using neutral detergent or acidic detergent, boil the sample under specific conditions, then repeatedly filter it in a specific crucible, rinse it twice with CH₃COCH₃, move the crucible into a drying oven at 100 degrees Celsius for 3 hours, and then weigh and calculate.

Technical indicators:

● Measurement objects : various feed, grain, cereal, food, and other agricultural and sideline products that require measurement of crude fiber, neutral fiber, and acidic fiber content;

● Number of test samples: 6 per test;

● Repetitive error :

Cellulose content below 10%, absolute value error ≤ 0.4;

Cellulose content above 10%, relative error ≤ 4%;

● Measurement time: Approximately 90 minutes are required on the instrument.

● Power supply : AC220V/50HZ；

● Power : 3.3KVA;

● Size : 540 × 450 × 670mm;

● Weight : 28kg.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Product packing list
