ST120FS Simplified Fully Automatic Sugar Hardness Range 0-50MPa Tester Trip 1-70mm Error ±1%

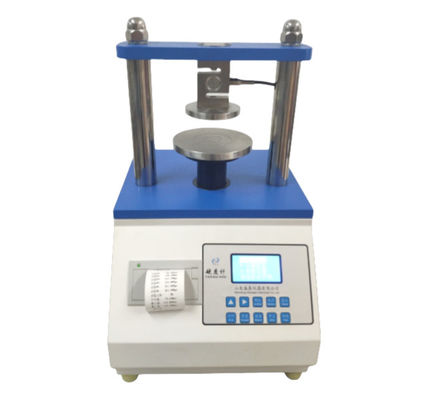

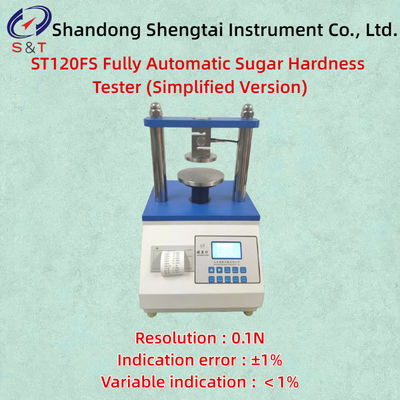

ST120FS Fully Automatic Sugar Hardness Tester (Simplified Version)

The ST120FS automatic sugar hardness tester is a new high-precision intelligent testing instrument developed by our company in accordance with the standards QBT 1214-2002 "Sugar" and QB/T 5011-2016 "Sugar Test Methods" GB/T35888-2018 "Sugar". It adopts modern mechanical design concepts and microcomputer processing technology for careful and reasonable design. It uses advanced components, supporting parts, and single-chip microcomputers for reasonable construction and multifunctional design, and is equipped with LCD Chinese display. It has various functions including parameter testing, conversion, adjustment, display, printing, etc. included in the standards.

Product Features:

● Modern design concept of mechatronics integration, compact structure, beautiful appearance, and easy maintenance;

● The instrument adopts a fixed upper pressure plate and high-precision weighing sensor to ensure the speed and accuracy of force value data acquisition; High measurement accuracy.

● Adopting a high-speed processor, it has a high degree of automation, fast data acquisition, fully automatic measurement, intelligent judgment function, and is safe and reliable. It has powerful data processing functions, can directly obtain statistical results of various data, and can automatically reset. It is easy to operate, easy to adjust, and has stable performance.

● Adopting a modular integrated thermal printer, with fast printing speed and convenient paper switching;

Product parameters:

Measurement range : 0-50MPa

Indication error : ±1%

Variable indication : ＜1%

Resolution : 0.1N

Work schedule : (1 ～ 70)mm

Diameter of circular pressure plate : 60mm

Human computer interface : Chinese and English menus; liquid crystal display

Print output : modular integrated thermal printer

Standard Printing : Equipped with a mini printer for automatic measurement and thermal printing

Working environment : Indoor temperature (20 ± 10) ° C; Relative humidity<85%

External dimensions : (530×350×580) mm

Weight : Approximately 55kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Product packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
