Test Stroke 200mm Particle Crushing Strength Tester Speed 0.5-500mm/Min GB/T2946

  • Test Stroke 200mm Particle Crushing Strength Tester Speed 0.5-500mm/Min GB/T2946
  • Test Stroke 200mm Particle Crushing Strength Tester Speed 0.5-500mm/Min GB/T2946
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument
Certification GB/T2946-2018、GB/T2945-2017、HG/T2783-1996、HG/T3927-2020、GB/T 30202.3-2013、GB/T 44750-2024
Model Number ST120K
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range 1-50kg (customizable) Force Measurement Accuracy Better Than ± 1%
Displacement Resolution 0.01mm Test Speed 0.5-500mm/min
Test Stroke 200mm Instrument Size 440 × 320 × 590mm
Instrument Weight 13.5kg Packaging Size 570 × 430 × 680mm
Leave a Message
Product Description

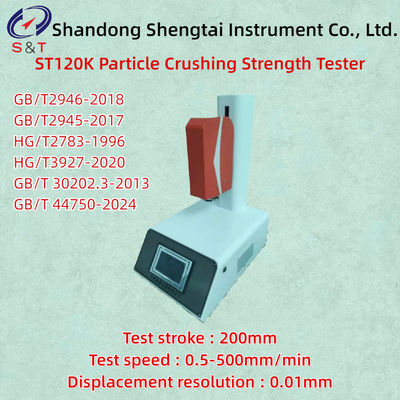

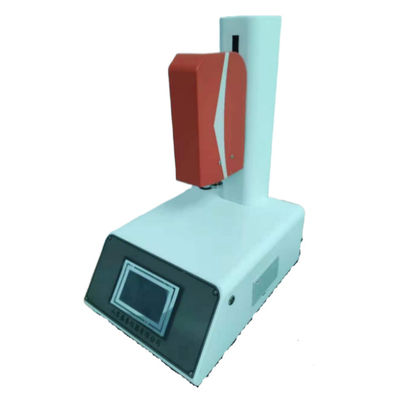

ST120K Particle Crushing Strength Tester

The ST120K particle crushing strength tester is designed and manufactured according to the measurement requirements of GB/T2946-2018 "Ammonium Chloride" and GB/T2945-2017 "Ammonium Nitrate", which meets the requirements of the national standard and is continuously optimized and innovated. The electrical control system realizes simplified operation, making the operation simpler, more convenient and reliable. HG/T2783-1996 Test Method for Compressive Crushing Strength of Molecular Sieves, Determination of Compressive Strength in HG/T3927-2020 "Industrial Activated Alumina" GB/T 30202.3-2013 "Test Method for Coal Granular Activated Carbon Used for Desulfurization and Denitrification Part 3: Wear Resistance and Compressive Strength", GB/T 44750-2024 "Measurement of Granular Compressive Strength"

Standard: GB/T2946-2018,GB/T2945-2017,HG/T2783-1996,HG/T3927-2020,GB/T 30202.3-2013,GB/T 44750-2024

Functional features:

Real time display of force curve trend chart

It can be automatically stopped by setting the displacement to reach the set distance

Compression test, the product will automatically shut down after being compressed to its maximum value

Automatically measure the size of particle strength, automatically generate results, and automatically calculate the maximum and minimum values for multiple sets of data

Technical Parameter:

Force measurement resolution 1/10000 (e.g. 200kg ÷ 10000=0.02kg); 2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)
Measurement range 1-50kg (customizable)
Force measurement accuracy better than ± 1%
Displacement resolution 0.01mm
Test speed 0.5-500mm/min
Test stroke 200mm
Instrument size 440 × 320 × 590mm
Instrument weight 13.5kg
Packaging size 570 × 430 × 680mm
Packaging Weight 18.9 kg (cardboard box)
Power supply single-phase, AC 220V ,50HZ

Test Stroke 200mm Particle Crushing Strength Tester Speed 0.5-500mm/Min GB/T2946 0

Force measurement resolution : 1/10000 (e.g. 200kg ÷ 10000=0.02kg); 2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)

Measurement range : 1-50kg (customizable)

Force measurement accuracy : better than ± 1%

Displacement resolution : 0.01mm

Test speed : 0.5-500mm/min

Test stroke : 200mm

Instrument size : 440 × 320 × 590mm Weight : 13.5kg

Packaging size : 570 × 430 × 680mm Weight : 18.9 kg (cardboard box)

Power supply : single-phase, AC 220V ,50HZ

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Test Stroke 200mm Particle Crushing Strength Tester Speed 0.5-500mm/Min GB/T2946 1

Product packing list

Number Name Quantity Unit Remarks
1 Host 1 Tower
2 power cord 1 Strip
3 Fuse tube 1 Individual 10A inside the insurance seat
4 Instruction manual 1 Copy
5 Certificate of conformity warranty card 1 Copy
