Smoke Point Tester For Plant Oil Vegetable Oil Automatic Determination

Smoke Point Tester For Plant Oil Vegetable Oil Automatic Edible Oil Smoke Point Tester Automatic Determination

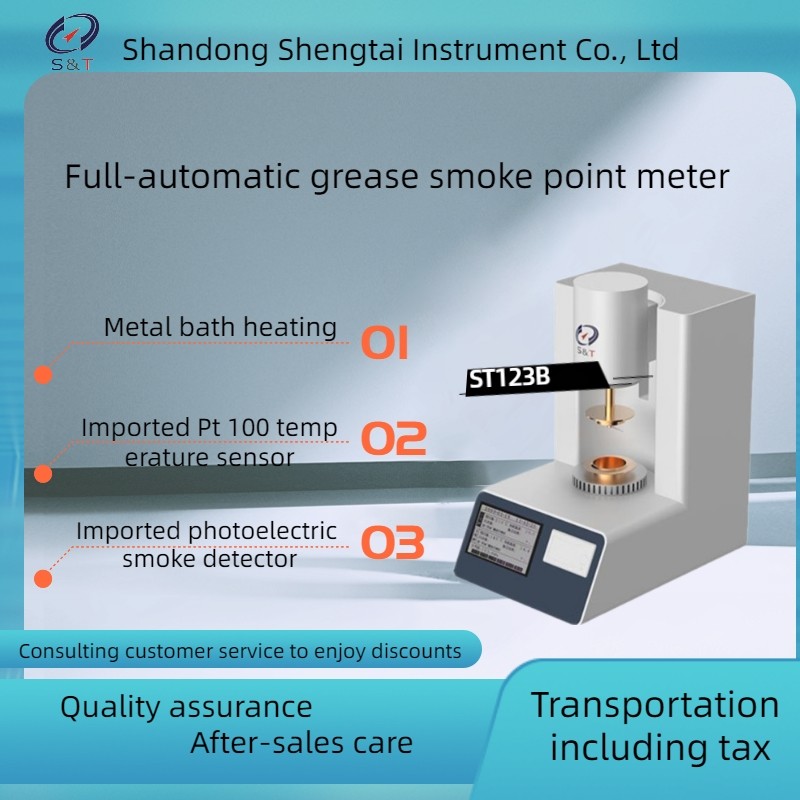

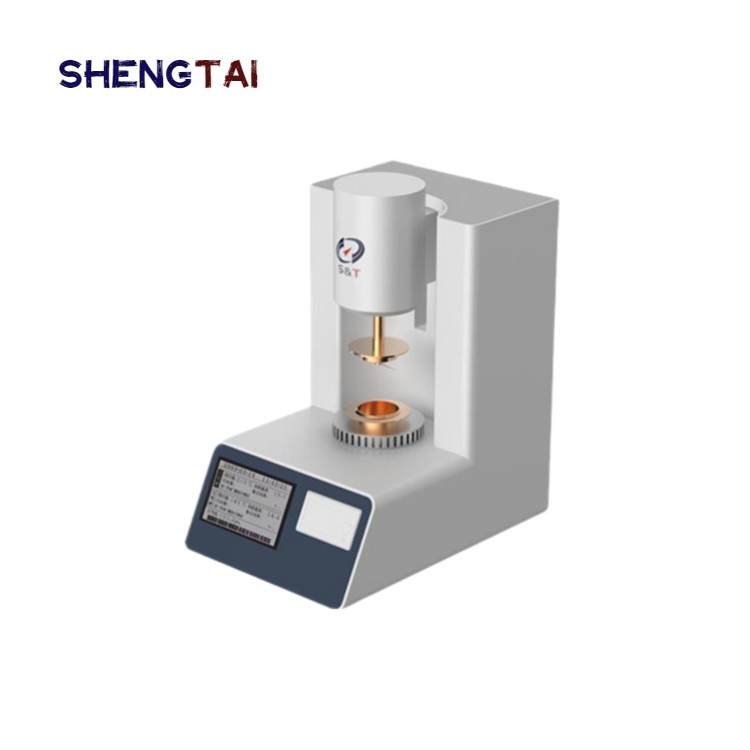

 ST-123B Automatic smoke point tester is based on the national standards GB/T20795-2006 " vegetable oil smoking point tester Determination" This instrument adopts LCD screen to display .It can preset smoke point temperature and sample mark number. It has menu that can prompt and guide. It adopts simulation tracking to display the function curve of temperature rising and test time It has the functions of English operation prompt,test date,test time and other parameters. This instrument can automatically detect the smoke point and print test data.The test arm automatically rise up and lower down. Widely used in quality control, import and export inspection, plant oil processing, plant oil storage and transportation, food processing, scientific research, agricultural breeding, the school ,plant oil smoking point testing department and so on.

edible oil smoke point tester vegetable oil smoking point tester Determination

Major technical parameter:

1. Power: AC(220±22)V,50Hz

2. Temperature measurement:Range:room temperature～400℃；

Accuracy:0.1℃

3. Heating rate: correspond with GB/T20759；

4. Storage method: the experimental results can store 199 sets of historical data for easy query;

5. Results output: also equipped with U disk output function, output to PC terminal for long-term storage

6. Output format: The resulting U disk output format is CSV or excel.

7. Data extension: laser printer interface, can link HP1108 laser printer (optional).

8. Data protection: with the date password setting function.

9. Standard printing: a standard micro-printer for automatic measurement and automatic thermal printing

10. Test mode:Photoelectric sensor,that wavelength is 430nm；

11. Remote upgrade: with TCP network transmission function, can be the software remote upgrade later

12. Ambient temperature:(10～40)℃；

13. Relative humidity:≤80%；

14. Total power consumption:≤500W.

Company Introduction

   Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

  For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
